ASRock Z590 OC Formula – Chiphell

After the launch of the Z170M OC Formula with dual memory slot design, which was widely loved by overclockers and looked very bold at the time, ASRock’s “OC Formula” (OC Formula, referred to as OCF) series also fell into silence for many years. But with With the end of Intel LGA1151, the LGA 1200 platform has entered a mature stage, and the OCF series has finally returned. The Z590 OC Formula launched this time continues to focus on the dual memory slot design that is conducive to memory overclocking. At the same time, it has returned to domineering and more expandable. The E-ATX large board type.

Read more @ Chiphell (Chinese)

ASRock Z590 OC Formula – AnandTech

Looking at performance, the Z590 OC Formula performed respectably in our stock performance test suite, including compute, gaming, and our system-focused tests. We saw a higher power draw in both long idle and idle power states than other Z590 models tested, but the OC Formula did well at full-load. The ASRock breezed through our non-UEFI POST time testing and DPC latency with solid results in both of these tests. Sometimes an overclocking focused motherboard rejects having a good baseline performance mode, but the OC Formula ticks the box that means that even without tweaking, it can work for everyone.

Read more @ AnandTech

ASRock Z590 OC Formula – TweakTown

Moving into the board specifications, the OC Formula is a board focused on overclocking but doesn’t sacrifice components to do so. At the top, we have support for both 10th and 11th Gen processors with a 16-phase power design. Memory is supported over two slots, 64GB top capacity with speeds ranging from 2133MHz to 6000MHz+.

For storage, we have eight SATA 6Gb/s ports alongside a single Hyper M.2 for Gen4 drives and two Ultra M.2 for Gen3 NVMe. Networking is handled by the Intel i225v for 2.5Gbe and Intel i219 for 1Gbe, while Wi-Fi uses the Intel AX210 WiFi6e chipset that includes Bluetooth 5.2.

Read more @ TweakTown

ASRock Z590 OC Formula – TechPowerUp

The OC Formula line from ASRock returns with the Z590 OC Formula. The ASRock Z590 OC Formula was designed in collaboration with Nick Shih to facilitate record breaking extreme overclocking.

The ASRock Z590 OC Formula features a powerful 16-phase VRM utilizing top-tier 90 A power stages along with a 12-layer PCB and even an OLED display. Along with the overclocking aids and features, the Z590 OC Formula also includes 2.5 Gb/s LAN and WiFi 6E, and a healthy complement of storage options. Let’s see how far the ASRock Z590 OC Formula can go!

Read more @ TechPowerUp

ASRock Launches Z590 OC Formula Motherboard

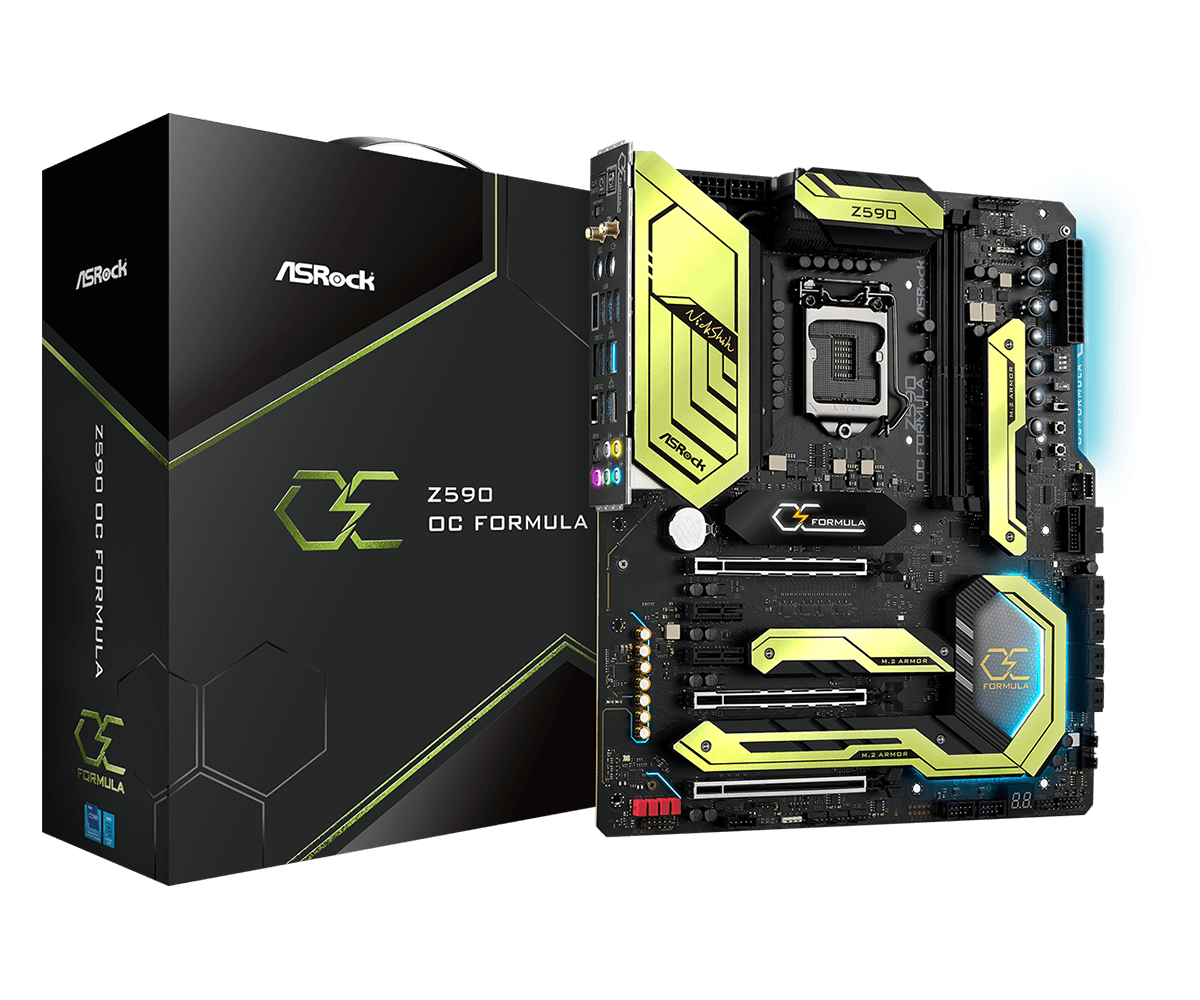

Taipei, Taiwan, March 30, 2021 — The leading global motherboard manufacturer, ASRock, proudly announces the return of its OC Formula motherboard lineup with the overclocker-designed Z590 OC Formula built for Intel’s 11th-generation desktop processors.

For years, ASRock has set the standard for overclocking with its previous OC Formula motherboards and its engineers have learnt from world-renowned overclocker Nick Shih, diligently studying what they need to break world records and perform their best.

“As Intel® launches its Z590 chipset to power the 11th Gen Intel® Core™ processors, ASRock once again is your partner in conquering the overclocking world with the Z590 OC Formula,” said Chris Lee, general manager of ASRock motherboard business unit.

ASRock’s Overclocking Leadership

Back by popular demand from overclockers, the ASRock Z590 OC Formula is filled with overclocking-friendly specs such as SMD Type DIMM Slots, a 12-layer server-grade low loss PCB, and 16 power phase 90A smart power stage technology.

ASRock’s SMD DIMM Slots help reduce signal loss, as well as improve RAM stability under high frequency so you can maximize your memory overclocking potential. The 12-layer server-grade PCB prevents PCB bending and improves signal integrity, giving higher performance as well as system stability. Smart power stage technologies are optimized for monitoring the current and temperature of each power phase which means the CPU gets a smooth supply of power resulting in enhanced overclocking performance and capability.

The Z590 OC Formula features unique PCB Backdrill craftsmanship which removes the excess stub in multilayered printed wiring boards. This benefits extreme memory overclocking by allowing signal to flow between layers with less loss through attenuation while also improving impedance matching.

To ensure that overclockers have easy access to key performance data, the motherboard also includes an OLED display. The motherboard also features an OC button for easy control of the overclocking features.

Fast Overclocking, Hardcore Gaming: Z590 OC Formula is Packed With Industry-Defining Specs

Aside from the world’s leading overclocking features, the Z590 OC Formula has industry-leading specs that everyone from overclockers, gamers to power users need.

The WiFi 6E technology that extends to the whole new 6GHz spectrum band, providing more WiFi capability gives better and faster internet traffic. The onboard 2.5Gb/s LAN high-performance network delivers plenty of bandwidth to devices like NAS backup devices or allowing gamers to enjoy the lowest latency so they can rack up the most kills. The board is also equipped with USB 3.2 Gen-2×2 headers, providing the most convenient connectivity for USB storage devices in need of superfast 20Gb/s transfer speeds.

PCIe4.0, the latest interconnect standard which doubles bandwidth available with PCIe 3.0, comes standard on the board to ensure that SSDs and GPUs perform their best. For the richest and clearest audio on the market, the Z590 OC Formula has ESS 9218 DAC Wima audio caps built-in delivers true HiFi audio without distortion to give crystal clear audio quality, and with the 112dB THD+N there is support for higher impedance for up to 600ohm using headphones.

Read more @ ASRock
